ASMD0805-020

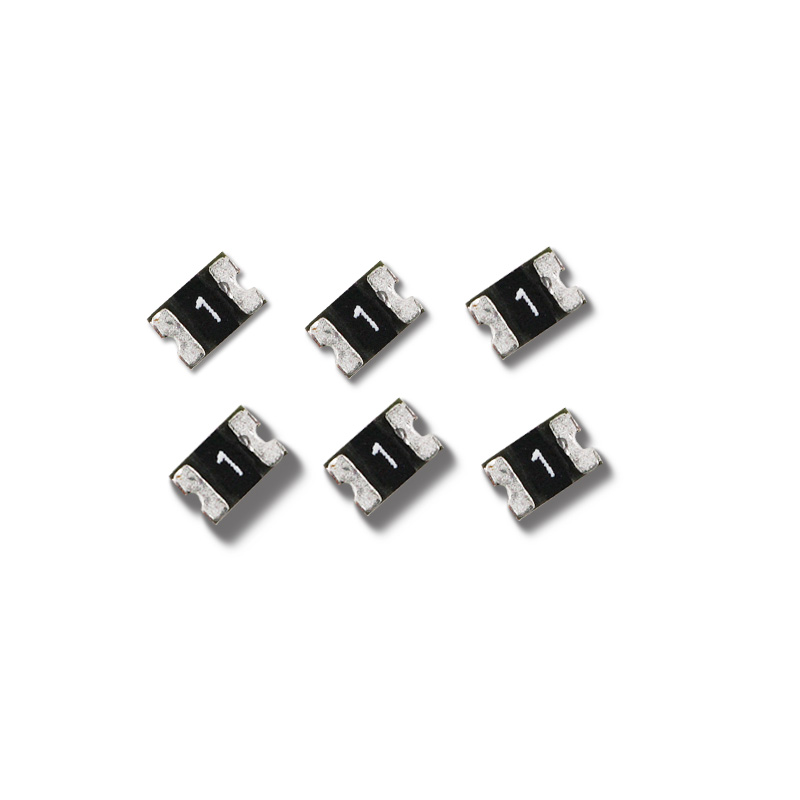

集電通ASMD0805-020貼片型、無鉛、卷盤式包裝自恢復(fù)保險(xiǎn)絲，適合自動化貼裝，應(yīng)用于高密度線路板，工作電流：0 05-1 10A 工作電壓：6 0-16 0V 工作溫度：-40~85℃。
| 型號 | Ihold@25℃(A) | Itrip@25℃(A) | Vmax(V) | Imax(A) | Pdtyp.(W) | Trip current(A) | Trip time(S) | Rimin(Ω) | R1max(Ω) | Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|
| ASMD0805-075 | 0.75 | 1.50 | 6.0 | 100 | 0.6 | 8.0 | 0.20 | 0.070 | 0.385 |
 |
| ASMD0805-075-12V | 0.75 | 1.50 | 12.0 | 100 | 0.6 | 8.0 | 0.20 | 0.070 | 0.358 |
|
| ASMD0805-150 | 1.50 | 3.00 | 6.00 | 100 | 1.0 | 8.0 | 0.50 | 0.015 | 0.130 |
|
| ASMD0805-125 | 1.25 | 2.50 | 6.0 | 100 | 1.5 | 8.0 | 0.60 | 0.025 | 0.140 |
|
| ASMD0805-110-12V | 1.10 | 2.20 | 12.0 | 100 | 0.6 | 8.0 | 0.30 | 0.035 | 0.210 |
|
| ASMD0805-110 | 1.10 | 2.20 | 6.0 | 100 | 0.6 | 8.0 | 0.30 | 0.035 | 0.210 |
|
| ASMD0805-100-12V | 1.00 | 1.95 | 12.0 | 100 | 0.6 | 8.0 | 0.30 | 0.040 | 0.230 |
|
| ASMD0805-100 | 1.00 | 1.95 | 6.0 | 100 | 0.6 | 8.0 | 0.30 | 0.040 | 0.230 |
|
| ASMD0805-050-24V | 0.50 | 1.00 | 24.0 | 100 | 0.5 | 8.0 | 0.10 | 0.100 | 0.850 |
|
| ASMD0805-050-16V | 0.50 | 1.00 | 16 | 100 | 0.5 | 8.0 | 0.10 | 0.100 | 0.850 |
|
| ASMD0805-050-12V | 0.50 | 1.00 | 12.0 | 100 | 0.5 | 8.0 | 0.10 | 0.100 | 0.850 |
|
| ASMD0805-050 | 0.50 | 1.00 | 6.00 | 100 | 0.5 | 8.0 | 0.10 | 0.100 | 0.850 |
|
| ASMD0805-035-12V | 0.35 | 0.75 | 12.0 | 100 | 0.5 | 8.0 | 0.10 | 0.200 | 1.200 |
|
| ASMD0805-035 | 0.35 | 0.75 | 6.0 | 100 | 0.5 | 8.0 | 0.10 | 0.200 | 1.200 |
|
| ASMD0805-020 | 0.20 | 0.50 | 9.0 | 100 | 0.5 | 8.0 | 0.02 | 0.500 | 3.500 |
|
| ASMD0805-010-30V | 0.10 | 0.30 | 30.0 | 100 | 0.5 | 0.5 | 1.50 | 0.750 | 6.000 |
|
| ASMD0805-010 | 0.10 | 0.30 | 15.0 | 100 | 0.5 | 0.5 | 1.50 | 0.750 | 6.000 |
|
| ASMD0805-005 | 0.05 | 0.15 | 15.0 | 100 | 0.5 | 0.5 | 1.50 | 1.500 | 20.00 |
|
