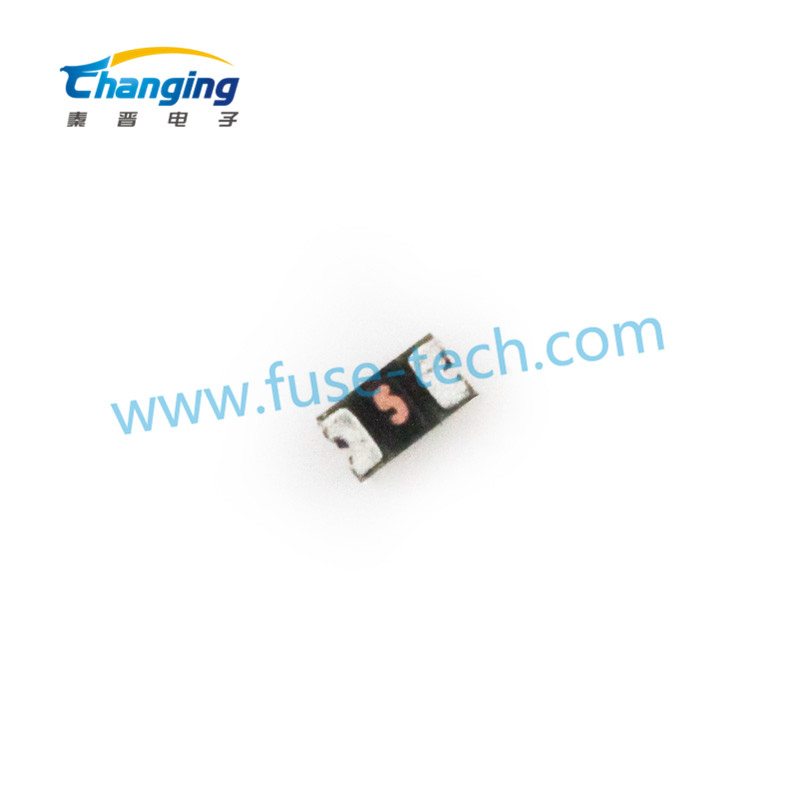

ASMD0603-050
集電通ASMD0603-050貼片型、無鉛、卷盤式包裝自恢復(fù)保險(xiǎn)絲，適合自動(dòng)化貼裝，應(yīng)用于高密度線路板，工作電流：0 1- 1A 工作電壓：6-16V 工作溫度：-40~85℃。
| 型號 | Ihold@25℃(A) | Itrip@25℃(A) | Vmax(V) | Imax(A) | Pdtyp.(W) | Trip current(A) | Trip time(S) | Rimin(Ω) | R1max(Ω) | Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|
| ASMD0603-100 | 1.00 | 2.00 | 6.0 | 40 | 0.5 | 8.00 | 0.10 | 0.05 | 0.30 |
 |
| ASMD0603-075 | 0.75 | 1.40 | 6.0 | 40 | 0.5 | 8.00 | 0.10 | 0.06 | 0.45 |
|
| ASMD0603-065 | 0.65 | 1.30 | 6.0 | 40 | 0.5 | 8.00 | 0.10 | 0.07 | 0.55 |
|
| ASMD0603-060 | 0.50 | 1.00 | 12.0 | 40 | 0.5 | 8.00 | 0.10 | 0.10 | 0.80 |
|
| ASMD0603-050-12V | 0.50 | 1.00 | 12.0 | 40 | 0.5 | 8.00 | 0.10 | 0.10 | 0.80 |
|
| ASMD0603-050 | 0.50 | 1.00 | 6.0 | 40 | 0.5 | 8.00 | 0.10 | 0.10 | 0.80 |
|
| ASMD0603-040 | 0.40 | 0.80 | 6.0 | 40 | 0.5 | 8.00 | 0.10 | 0.15 | 0.90 |
|
| ASMD0603-035 | 0.35 | 0.75 | 6.0 | 40 | 0.5 | 8.00 | 0.10 | 0.20 | 1.40 |
|
| ASMD0603-025-16V | 0.25 | 0.55 | 16.0 | 40 | 0.5 | 8.00 | 0.08 | 0.50 | 3.00 |
|
| ASMD0603-025 | 0.25 | 0.55 | 9.0 | 40 | 0.5 | 8.00 | 0.08 | 0.50 | 3.00 |
|
| ASMD0603-010-9V | 0.10 | 0.30 | 9.0 | 40 | 0.5 | 0.50 | 1.00 | 0.90 | 8.00 |
|
| ASMD0603-020-16V | 0.20 | 0.50 | 16.0 | 40 | 0.5 | 1.00 | 0.60 | 0.55 | 3.50 |
|
| ASMD0603-020 | 0.20 | 0.50 | 9.0 | 40 | 0.5 | 1.00 | 0.60 | 0.55 | 3.50 |
|
| ASMD0603-010 | 0.10 | 0.30 | 15.0 | 40 | 0.5 | 0.50 | 1.00 | 0.90 | 8.00 |
|
| ASMD0603-005-9V | 0.05 | 0.15 | 9.0 | 20 | 0.5 | 0.25 | 1.00 | 3.80 | 30.0 |
|
| ASMD0603-005 | 0.05 | 0.15 | 15.0 | 20 | 0.5 | 0.25 | 1.00 | 3.80 | 30.0 |
|
| ASMD0603-004 | 0.04 | 0.12 | 24.0 | 20 | 0.5 | 0.20 | 1.00 | 4.00 | 40.0 |
|
| ASMD0603-003-9V | 0.03 | 0.09 | 9 | 20 | 0.5 | 0.20 | 1.00 | 6.00 | 50.0 |
|
| ASMD0603-003 | 0.03 | 0.09 | 30 | 20 | 0.5 | 0.20 | 1.00 | 6.00 | 50.0 |
|
| ASMD0603-002-9V | 0.02 | 0.06 | 9 | 20 | 0.5 | 0.20 | 1.00 | 12.0 | 70.0 |
|
| ASMD0603-002 | 0.02 | 0.06 | 60 | 20 | 0.5 | 0.20 | 1.00 | 12.0 | 70.0 |
|
| ASMD0603-001 | 0.01 | 0.03 | 60 | 20 | 0.5 | 0.20 | 1.00 | 12.0 | 70.0 |
|
